Overview - Bumper Cover, R Models

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

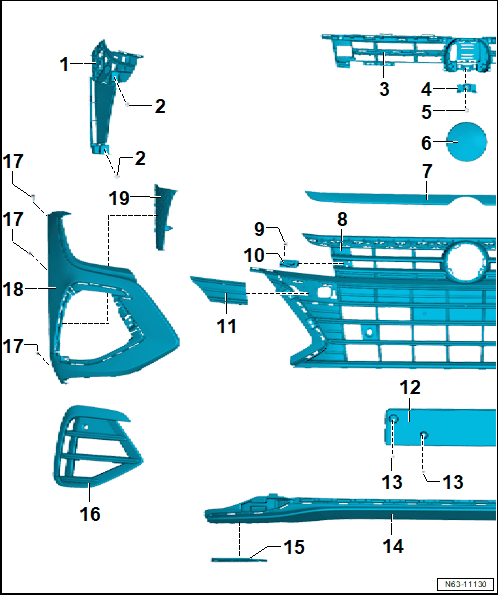

Fig 1: Exploded View Of Bumper Cover (R Models)
GWWN63-11130Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Support
    • Left and right
    • Engaged and bolted to the front bumper cover
    • To be removed only with front bumper cover removed
    • Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
  2. Bolts
    • Left and right
    • Quantity: 2 on each side
    • 2 Nm
  3. Radiator Grille Reinforcement
    • Locked and bolted to the radiator grille
    • To be removed only with front bumper cover removed
  4. Support
    • For height compensation
  5. Bolt
    • Quantity: 1
    • 8 Nm
  6. Brand Emblem
  7. Trim
    • Painted
    • Engaged in the radiator grille
    • To be removed only with front bumper cover removed
  8. Radiator Grille
  9. Bolts
    • Quantity: 1
    • 2 Nm
  10. Emblem
  11. Cover
  12. License Plate Holder
  13. Bolts
    • Quantity: 4
    • 2 Nm
    • Different number of clips or bolts depending on the version
  14. Spoiler
    • Engaged with the bumper cover and the radiator grille
    • To be removed only with front bumper cover removed
    • Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
  15. Cover
    • Left and right
    • Locked to bumper cover
    • To be removed only with front bumper cover removed
  16. Air Supply
    • Left and right
    • There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
    • Locked to bumper cover
    • To be removed only with front bumper cover removed
    • Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
  17. Bolts
    • Quantity: 3 on each side
    • 2 Nm
  18. Bumper Cover
    • PP/EPDM material
    • Partial sections, left, right and center
    • Partial Section, Removing and Installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
    • Locked and bolted to other components on the front bumper cover
    • Partial sections only to be removed when the front bumper cover is removed
    • Entire Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
  19. Reinforcement
    • Locked to bumper cover
    • To be removed only with front bumper cover removed
