License Plate Holder, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The license plate holder can have different sizes depending on the market.
The contour of the bumper determines the height of the license plate holder.
The bumper cover wires can be routed behind the holes for the clips.
When drilling the holes, they must have a depth of 12 mm.
Installing

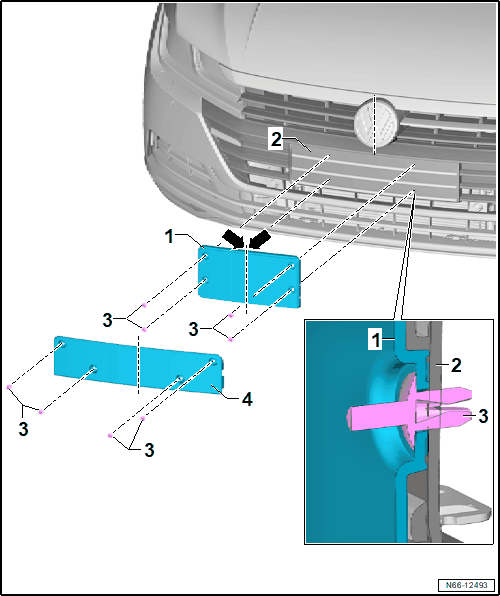

-- Position the license plate holder -1 or 4- on the front bumper cover -2- and push in the clips -4-.
Installing
-- Determine the license plate holder -1 or 4- to the VW emblem -arrows-.
-- Mark the holes and remove the license plate holder.
-- Measure the clips -3- and make a 12 mm stop depth mark and drill the holes.
-- Position the license plate holder -1 or 4- and push in the clips -3-.
