End Panel, Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the end panel needs to be removed separately without removing the fender, then the door must be removed.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

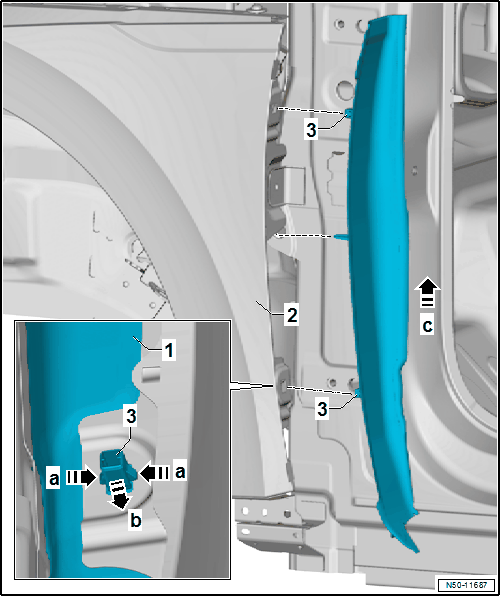

-- Loosen the hook on the pin -3- -a arrows-.

-- Remove the end plate -1- from the fender -2- -b arrow-.

-- Pull out the end panel -1- upward -arrow c-.

Installing

NOTE:

Install the fender -1- so that it is without tension.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

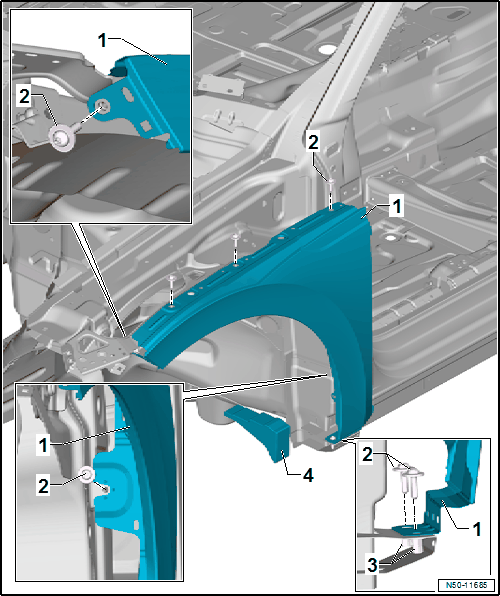

Install in reverse order of removal.

-- With the fender brace loosened, align the fender without tension.

-- Note the parallel alignment and gap dimensions.

-- Wax the threaded connection to the side sill. Refer to Applying wax .

-- Install the end panel.

Tightening Specifications

Fender. Refer to OVERVIEW - FENDER .
