Cover, Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

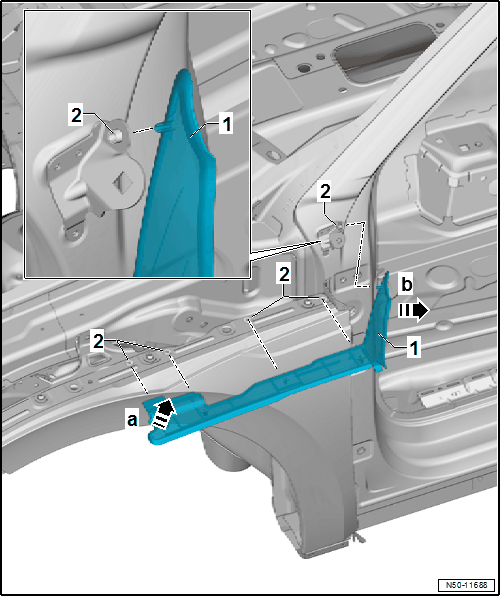

-- Loosen the cover -1- gradually from the grommets -2- -arrow a-.

-- Loosen the cover -1- from the grommet -2- -arrow b-.

-- Remove the cover between the fender and hood.

Fender, Removing

NOTE:

The following describes the removal and installation of the left fender. Removing and installing the right fender is identical.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- If equipped on the right side, loosen the washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

-- Release and remove the trim molding hook.

-- Remove the noise insulation -4-.

-- Remove the bolts -2-.

-- Remove the fender -1-.
