Plenum Chamber Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

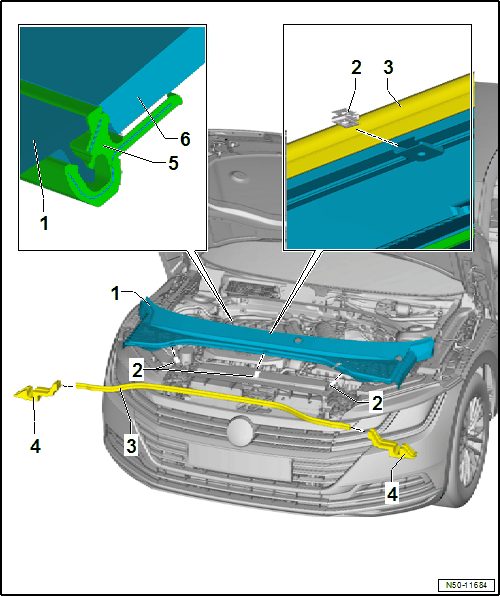

Fig 1: Plenum Chamber Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the wiper arms. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .

-- Remove the seal -3- from the entire length of the plenum chamber cover -1-.

-- Unclip the clips -2- (quantity: 3).

-- Remove the plenum chamber cover -1- upward from the retainer -5- by hand.
