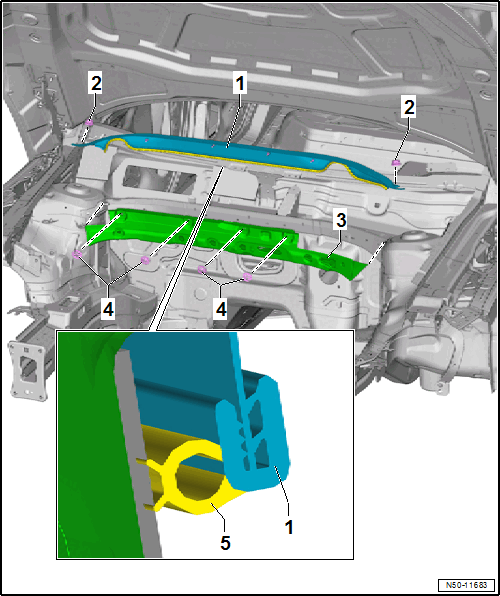

Overview - Bulkhead
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Bulkhead
- Removing and installing. Refer to BULKHEAD, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- 8.0 Nm
- Insulation
- Clamping Washers
- Quantity: 4
- For securing the insulation to the bulkhead
- Bulkhead Seal
