7.5 J X 17 ET 40
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Always pay attention to the wheel/tire allocations to the respective engine types which are listed in the overview table.
| Explanation of specifications on disc wheels: | Refer to the appropriate Service Information . |
| Tightening specifications for wheel bolts: | Refer to the appropriate Service Information . |
| Pitch circle diameter: | 112 mm |
| Number of wheel bolt holes: | 5 |

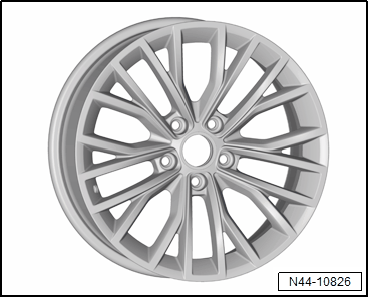

3G8 601 025 H - "CARDIFF" Aluminum Rim
| Dimension: | 7.5 J x 17 |
| Offset in mm: | 40 |
| Wheel load in kg: | 635 |
