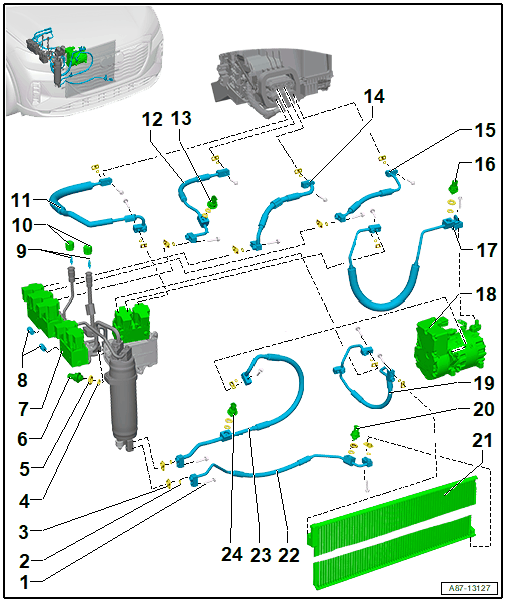

Overview - Refrigerant Lines
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Applies to all shown connection locations
- Replace after removing
- 13 Nm
- Seal
- Applies to all shown connection locations
- Replace after removing
- Fastener
- Applies to all shown connection locations
- Replace after removing
- Seal
- Applies to all A/C pressure/temperature sensors shown
- Replace after removing
- Dust Protector
- Applies to all A/C pressure/temperature sensors shown
- Replace after removing
- A/C Pressure/Temperature Sensor 2 -G826-
- Refer to A/C Pressure/Temperature Sensor 2 G826, Removing and Installing .
- 40 Nm
- Heat Pump Valve Unit
- Refer to Overview - Heat Pump Valve Unit .
- Refer to Heat Pump Valve Unit, Removing and Installing .
- Pressure Relief Valve
- Left-hand thread
- Replace after removing
- Refer to Pressure Relief Valve, Removing and Installing .
- 14 Nm
- Evacuating and Charging Valve
- Valve Cap
- Refrigerant Line
- Refrigerant Line
- A/C Pressure/Temperature Sensor 4 -G828-
- Refer to A/C Pressure/Temperature Sensor 4 G828, Removing and Installing .
- 40 Nm
- Refrigerant Line
- Refrigerant Line
- A/C Pressure/Temperature Sensor -G395-
- Refrigerant Line
- A/C Compressor -VX81-
- Refrigerant Line
- A/C Pressure/Temperature Sensor 3 -G827-
- Refer to A/C Pressure/Temperature Sensor 3 G827, Removing and Installing .
- 40 Nm
- Gas Cooler
- Refer to Gas Cooler, Removing and Installing. .
- Refrigerant Line
- Refrigerant Line
- A/C Pressure/Temperature Sensor 5 -G829-
- Refer to A/C PRESSURE/TEMPERATURE SENSOR 5 G829, REMOVING AND INSTALLING .
- 40 Nm
