Refrigerant Shut-Off Valve 2 -N640-, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
-- Install the seals and loss protection devices without oil.

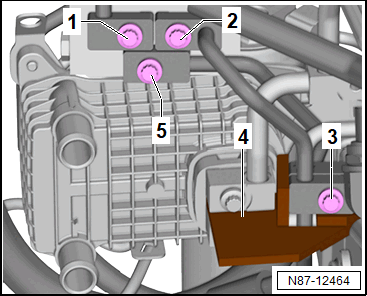

-- Insert the Counterholder :T10630 to tighten the bolts -3-.
If the shut-off valves were replaced:
-- Perform the "Addressing the refrigerant valves" function using the Vehicle Diagnostic Tester . Refer to Diagnostic Entries .
