Heating Element (PTC) 3 -Z132-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Tip

If the Cooling System Service Machine - TEXA :VAS 531 011 is used to finish filling the cooling system, then it is sufficient to clamp off the coolant hoses.

CAUTION:

There is a risk of fatal injury due to high voltage.

Electrocution by direct contact or electric arc can cause severe bodily injury or fatal injury.

- Have a high-voltage technician (HVT) or a high-voltage expert (HVE) de-energize the high-voltage system.

-- Refer to [For engine(s) EBRA] High-Voltage System, De-Energizing .

-- Remove the heater and A/C unit air intake housing. Refer to Heater and A/C Unit Air Intake Housing, Removing and Installing .

Finish filling the cooling system using the Cooling System Service Machine - TEXA :VAS 531 011 .

-- Clamp off the coolant hoses -2- using the Hose Clamps - Up To 25mm :3094 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

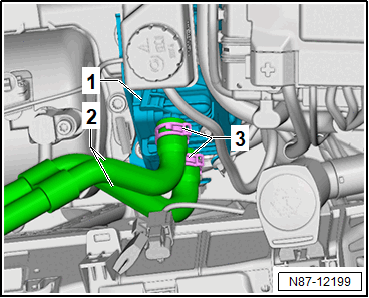

-- Disconnect the clamps -3- and remove the coolant hoses -2-.

Finish filling the cooling system using the Cooling System Charge Kit :VAS 6096 .

-- Refer to COOLANT, DRAINING .

-- Disconnect the clamps -3- and remove the coolant hoses -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for all vehicles

-- Remove the nut -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the potential equalization cable -3-.

-- Unclip the bracket -5-.

-- Disconnect the connectors -1- and -4-.

-- Loosen the connector -2- from the bracket -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

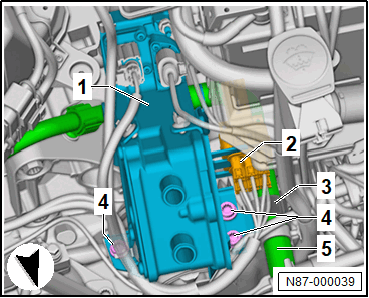

-- Disconnect the clip -3- of the coolant hose -5- from the bracket.

-- Remove the bolts -4-.

-- Remove the Heating Element (PTC) 3 -Z132- -1-.
