Front Instrument Panel Air Duct, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

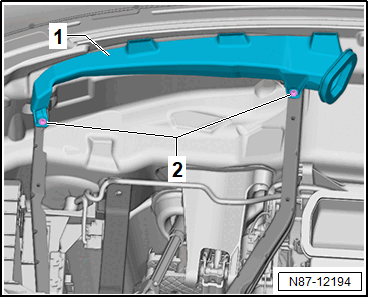

-- Remove the bolts -2-.

GWWN87-12194Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front instrument panel air duct -1-.
