Center Instrument Panel Vent Air Duct, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

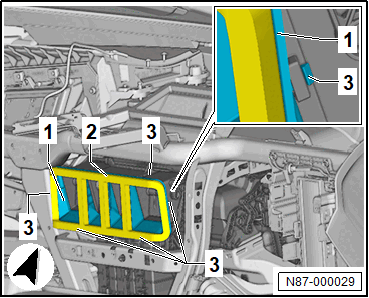

-- Unhook the retainers -3- and remove the center instrument panel vent air routing -1-.
