Overview - Front Actuators

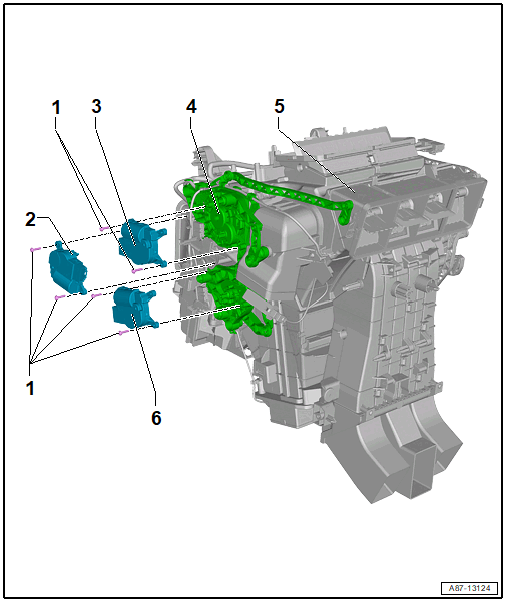

Overview - Front Actuators, Left Side

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bolt
   • 1.5 Nm
2. Actuator for Left Front Temperature Control Door -VX34-
   • Refer to ACTUATOR FOR LEFT FRONT TEMPERATURE CONTROL DOOR -VX34-, REMOVING AND INSTALLING  .
3. Actuator for Left Front Air Distribution Door -VX93-
   • Refer to ACTUATOR FOR LEFT FRONT AIR DISTRIBUTION DOOR -VX93-, REMOVING AND INSTALLING  .
4. Adjusting Unit
5. Heater and A/C Unit
   • Refer to HEATING AND A/C UNIT, REMOVING AND INSTALLING, R1234YF  / HEATING AND A/C UNIT, REMOVING AND INSTALLING, R744  .
6. Actuator for Rear Temperature Control Door -VX95-
   • Refer to ACTUATOR FOR REAR TEMPERATURE CONTROL DOOR -VX95-, REMOVING AND INSTALLING  .

Overview - Front Actuators, Right Side

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Heater and A/C Unit
   • Refer to HEATING AND A/C UNIT, REMOVING AND INSTALLING, R1234YF  / HEATING AND A/C UNIT, REMOVING AND INSTALLING, R744  .
2. Bolt
   • 1.5 Nm
3. Actuator for Defroster Door -VX47-
   • Refer to Actuator for Defroster Door -VX47-, Removing and Installing  .
4. Adjusting Unit
5. Actuator for Right Front Air Distribution Door -VX94-
   • Refer to ACTUATOR FOR RIGHT FRONT AIR DISTRIBUTION DOOR -VX94-, REMOVING AND INSTALLING  .
6. Actuator for Right Front Temperature Control Door -VX35-
   • Refer to ACTUATOR FOR RIGHT FRONT TEMPERATURE CONTROL DOOR -VX35-, REMOVING AND INSTALLING  .

Overview - Front Actuators, Heater and A/C Unit Air Intake Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bolt
   • 1.5 Nm
2. Actuator for Fresh and Air Recirculation Door -VX96-
   • Refer to ACTUATOR FOR FRESH AND AIR RECIRCULATION DOOR -VX96-, REMOVING AND INSTALLING  .
3. Adjusting Unit
4. Heater and A/C Unit
   • Refer to HEATING AND A/C UNIT, REMOVING AND INSTALLING, R1234YF  / HEATING AND A/C UNIT, REMOVING AND INSTALLING, R744  .
