Oil Pump, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the oil pan lower section. Refer to Oil Pan Lower Section, Removing and Installing .

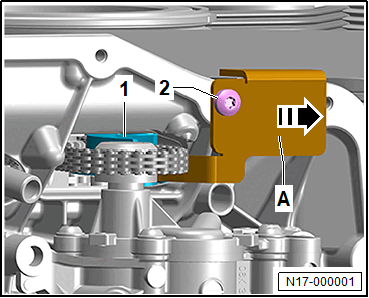

-- Attach the Fastening Device:T40414 -A- at the chain tensioner -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the Fastening Device:T40414 -A- in direction of -arrow- and tighten with the bolt -2-.

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage the oil pump drive chain -2- and remove the oil pump -1-.
