Oil Pump, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

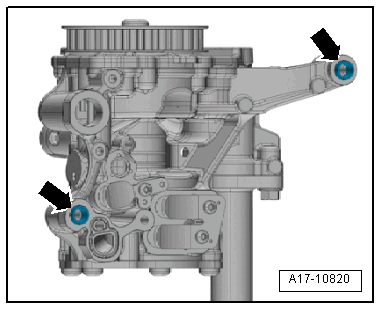

-- Make sure the alignment sleeves -arrows- are inserted.

Fig 1: Identifying Alignment Sleeves

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the oil pump screen and the oil channels in the oil pan upper section for contamination.

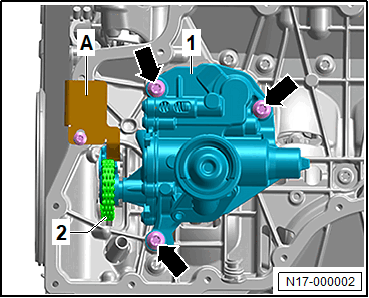

-- Insert the chain sprocket in the oil pump drive chain -2- and install the oil pump -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Fastening Device:T40414 -A- and check if the oil pump drive chain -2- is correctly positioned on the chain sprocket.
