Oil Pan Upper Section, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

CAUTION:

Risk of injuring the eyes from sealant residue.

- Wear protective eyewear.

CAUTION:

Risk of injury due to chemical cleaning solutions. Chemical cleaning solutions can be easily inflammable and cause eye and skin irritation.

- Wear protective eyewear, safety gloves and a respirator.

- Pay attention to the safety data sheet and the operating instructions of the chemical.

-- Remove the sealant residue at the sealant surfaces using a brush from the Brush Cleaning Set:VAS 294 019 and commercially available chemical sealant remover.

Requirement

The sealing surfaces must be free of sealant residue and lubricant.

-- Check the lower timing chain cover for deformation.

Requirement

If a deformation is determined which cannot be repaired, then the lower timing chain cover must be replaced after installation of the oil pan upper section.

-- Attach the oil pan upper section without sealant and check the gap dimensions.

-- Check for dirt in the oil channels in the oil pan upper section and in the cylinder block.

-- Cut off the tube nozzle at the front marking, so that the diameter of the tube nozzle is 2 mm.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

There is a risk that the lubrication system could be blocked by excess sealant.

- Do not apply sealant bead thicker than indicated.

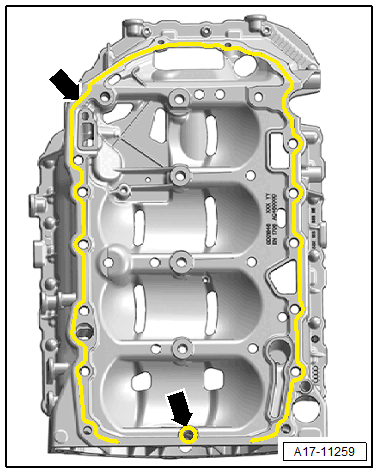

-- Apply the sealant bead -arrow- using the Applicator Gun:VAS 6966 onto the sealing surface of the oil pan upper section.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

The sealant bead thickness -arrow- must be 2 to 3 mm.
In the area of the threaded holes, the sealant bead -arrow- must be applied to the inner side.

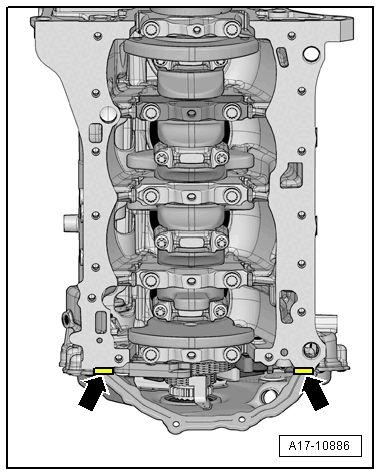

-- Apply sealant -arrows- between the cylinder block and the lower timing chain cover.

Fig 1: Applying Silicone Sealant

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

On the transmission side, the oil pan upper section and the cylinder block must be flush.
The sealant bead thickness must be 2 to 3 mm.

-- Position the oil pan upper section, at the same time guide the oil pan drive chain.

-- Tighten the bolts.

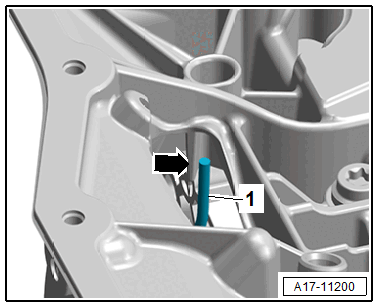

-- Engage the wire clip -1- using the Elbow Assembly Tool:T10118 to the locating tab -arrow- of the oil pan upper section.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
