Oil Pan Lower Section, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

CAUTION:

Risk of injuring the eyes from sealant residue.

- Wear protective eyewear.

CAUTION:

Risk of injury due to chemical cleaning solutions. Chemical cleaning solutions can be easily inflammable and cause eye and skin irritation.

- Wear protective eyewear, safety gloves and a respirator.

- Pay attention to the safety data sheet and the operating instructions of the chemical.

-- Remove the sealant residue at the sealant surfaces using a brush from the Brush Cleaning Set:VAS 294 019 and commercially available chemical sealant remover.

Requirement

The sealing surfaces must be free of sealant residue and lubricant.

-- Cut off the tube nozzle at the front marking, so that the diameter of the tube nozzle is 2 mm.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

There is a risk that the lubrication system could be blocked by excess sealant.

- Do not apply sealant bead thicker than indicated.

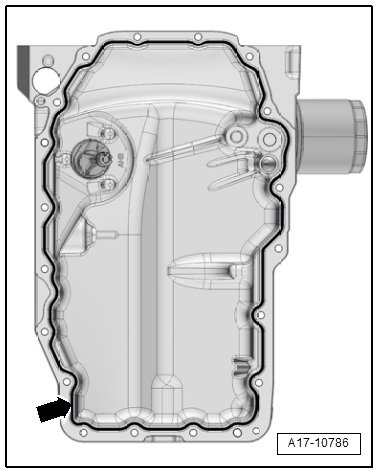

-- Apply the sealant bead -arrow- using the Applicator Gun:VAS 6966 onto the sealing surface of the oil pan lower section.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

The sealant bead thickness -arrow- must be 2 to 3 mm.
In the area of the threaded holes, the sealant bead -arrow- must be applied to the inner side.
The oil pan lower section must be installed within 5 minutes of applying the sealant.

-- Position the oil pan lower section and tighten the bolts.

Requirement

The sealant must cure for 30 minutes before engine oil can be filled.

-- Filling the engine oil. Refer to ENGINE OIL, DRAINING, REPLACING OIL FILTER AND FILLING .
