Oil Separator, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the cylinder ignition coils "3" and "4". Refer to IGNITION COIL WITH POWER OUTPUT STAGE, REMOVING AND INSTALLING .

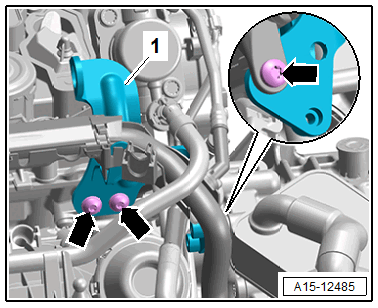

-- Remove the bolts -arrows- and move the engine lifting eye -1- to the side.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles with Crankcase Pressure Sensor -G1068-

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for All Vehicles

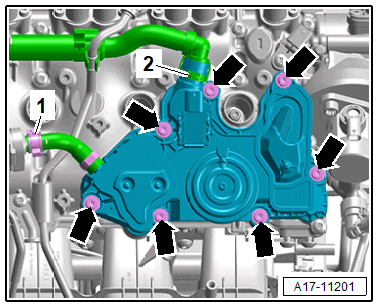

-- Loosen the clamp -1- and remove the hose.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and remove the hose for the crankcase ventilation -2-.

-- Remove the bolts -arrows- and the oil separator.
