Turbocharger Speed Sensor 1 G688, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Loosen the hose clamps -1 and 2- and remove the air duct pipe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the catches in direction of -arrows- and detach the air duct hose.

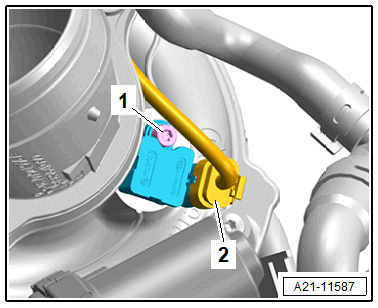

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1-.

-- Remove the Turbocharger Speed Sensor 1 -G688-.
