Overview - Turbocharger
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

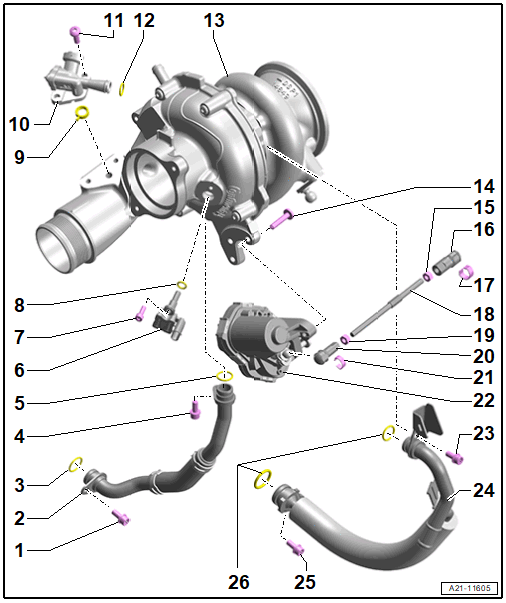

Turbocharger - Part 1
- Seal
- Replace after removing
- Nut
- Replace after removing
- Quantity: 4
- Refer to Fig 3
- Locking Plate
- Replace after removing
- Quantity: 2
- Turbocharger
- Refer to Turbocharger, Removing and Installing .
- Oil Supply Line
- Refer to Oil Supply Line, Removing and Installing .
- O-Ring
- Replace after removing
- Double Bolt
- 9 Nm
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- O-Ring
- Replace after removing
- Bolt
- 9 Nm
- Quantity: 2
- Turbocharger Connection
- O-Ring
- Replace after removing
- O-Ring
- Replace after removing
- Coolant Line
- Return
- Bolt
- 9 Nm

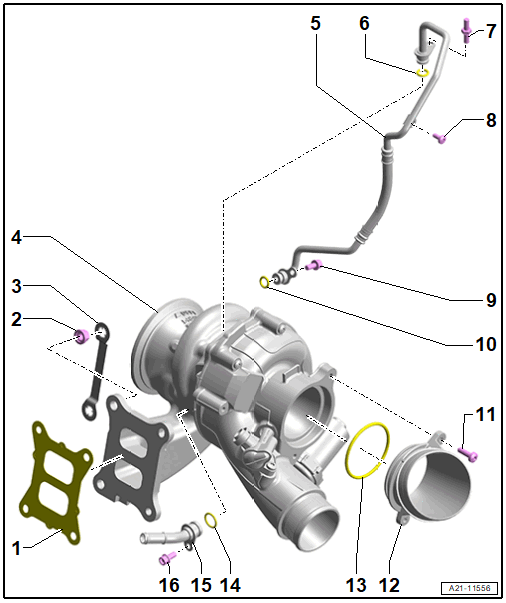

Turbocharger - Part 2
- Bolt
- 9 Nm
- Turbocharger Oil Return Line
- O-Ring
- Replace after removing
- Bolt
- 9 Nm
- O-Ring
- Replace after removing
- Turbocharger Speed Sensor 1 -G688-
- Bolt
- 4 Nm
- O-Ring
- Replace after removing
- Seal
- Replace after removing
- Venturi Injector
- Bolt
- 9 Nm
- Quantity: 2
- O-Ring
- Replace after removing
- Turbocharger
- Refer to Turbocharger, Removing and Installing .
- Bolt
- 9 Nm
- Quantity: 3
- Nut
- 8 Nm
- Ball Socket
- Clip
- Replace after removing
- Control Rod
- Nut
- 8 Nm
- Ball Socket
- Clip
- Replace after removing
- Charge Air Pressure Control Module -GX34-
- With Charge Air Pressure Actuator -V465-
- With the Charge Air Pressure Actuator Position Sensor -G581-
- Refer to CHARGE AIR PRESSURE CONTROL MODULE GX34, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Coolant Line
- Bolt
- 9 Nm
- O-Ring
- Replace after removing
- Quantity: 2
Turbocharger - Tightening Specification and Sequence
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1 through 4- | Install all the way by hand |
| 2. | -1 and 2- | 10 Nm |
| 3. | -3 and 4- | 25 Nm |
| 4. | -1 and 2- | 25 Nm |
