Charge Air Pressure Control Module GX34, Removing And Installing: Removing

-- Refer to DRAIN THE COOLANT .

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

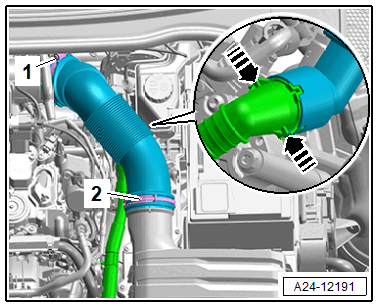

-- Loosen the clamps -1 and 2- and remove the air guide pipe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the catches in direction of -arrows- and detach the air duct hose.

Turbocharger without Recirculating Valve

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the turbocharger connection -1-.

Turbocharger with Recirculating Valve

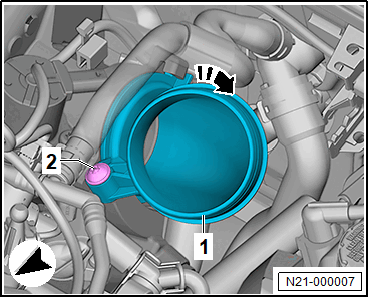

-- Remove the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the turbocharger connection -1- in direction of -arrow- and remove.

Continuation for All Vehicles

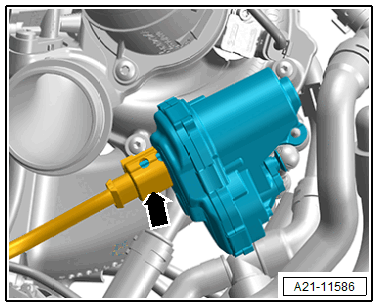

-- Disconnect the connector -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -top arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

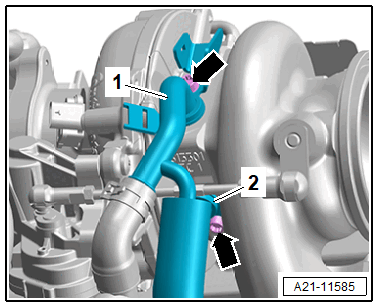

-- Remove the coolant supply line -1-.

-- Release the clamp -2- and remove the control rod.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

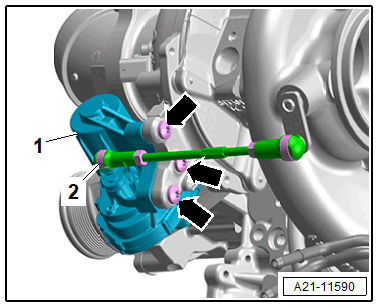

-- Remove the bolts -arrows-.

-- Remove the Charge Air Pressure Control Module -GX34- -1-.
