Turbocharger Recirculating Valve N249, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air filter housing. Refer to Air Filter Housing, Removing and Installing .

-- Remove the fan shroud. Refer to Fan Shroud, Removing and Installing .

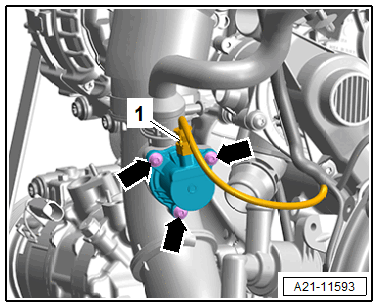

-- Disconnect the connector -1-.

GWWA21-11593Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows-.

-- Remove the Turbocharger Recirculation Valve -N249-.
