Overview - Charge Air System

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

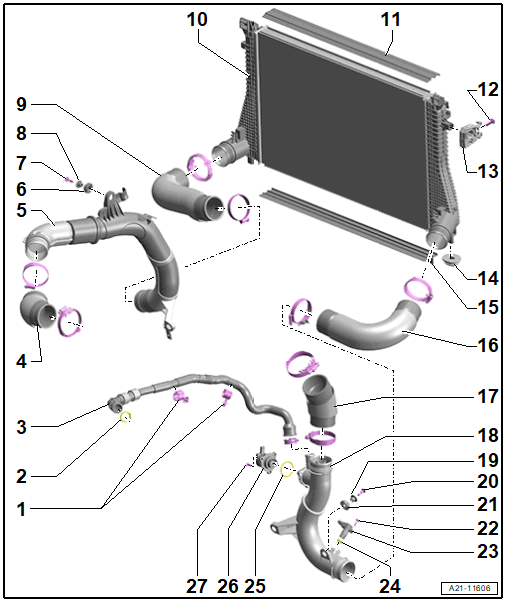

Fig 1: Exploded View Of Charge Air System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Clip
- Quantity: 2
O-Ring
Charge Air Hose
Charge Air Hose
Left Air Duct Pipe
- Refer to Left Air Duct Pipe, Removing and Installing .
Grommet
Bolt
- 7 Nm
Sleeve
Charge Air Hose
Charge Air Cooler
- Refer to Charge Air Cooler, Removing and Installing .
Sealing Strip
Bolt
- 5.5 Nm
- For repairs
- Quantity: 2
Radiator Mount
- Quantity: 2
Rubber Bushing
- Quantity: 2
Sealing Strip
Charge Air Hose
Charge Air Hose
Front Air Duct Pipe
- Refer to Front Air Duct Pipe, Removing and Installing .
Sleeve
Bolt
- 7 Nm
Grommet
Bolt
- 5 Nm
Charge Air Pressure Sensor -GX26-
- With Charge Air Pressure Sensor -G31-
- With Charge Air Temperature Sensor -G1001-
- Refer to CHARGE AIR PRESSURE SENSOR GX26, REMOVING AND INSTALLING .
O-Ring
O-Ring
- Replace after removing
Turbocharger Recirculation Valve -N249-
- Refer to TURBOCHARGER RECIRCULATING VALVE N249, REMOVING AND INSTALLING, DNFC, DNFE, DNFF, DNFG, DSFB, DSFE AND DSFF .
Bolt
- 5 Nm
- Quantity: 3
