Charge Air Cooler, Removing And Installing: Removing

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Disconnect the refrigerant lines from the condenser. Refer to REFRIGERANT LINE FROM CONDENSER TO EVAPORATOR, REMOVING AND INSTALLING .

-- Remove the radiator. Refer to Radiator, Removing and Installing .

-- Loosen the clamps -1 and 2-.

Fig 1: Identifying Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the charge air hose.

Radiator Mount with Catch

-- Release the catches in direction of -arrows- or cut them with a commercially available diagonal cutter.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tip

The radiator mount will be bolted during the installation with the lock carrier. Allocation. Refer to the appropriate Electronic Parts Information.

Bolted Radiator Mount

-- Remove the bolts -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for All Vehicles

-- Push the charge air cooler and the condenser toward the rear.

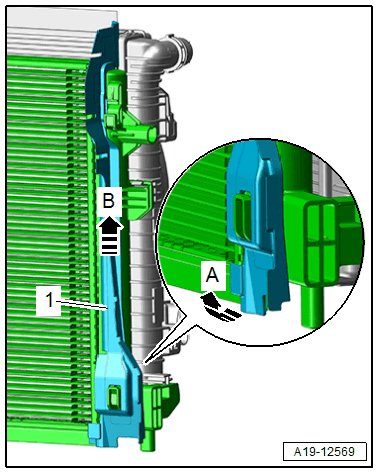

-- Release the right and left sealing strip -1- in the direction of -arrow A- and remove in the direction of -arrow B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the retainers -1- in direction of -arrow A- and disengage the condenser -3- from the charge air cooler -2- in direction of -arrow B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the condenser -3-.

-- Guide out the charge air cooler -2- downward.
