Front Air Duct Pipe, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air duct on the lock carrier. Refer to the appropriate Service Information .

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Loosen the clamp -2- and remove the charge air hose.

Fig 1: Identifying Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fan shroud. Refer to Fan Shroud, Removing and Installing .

-- Remove the coolant hose from the clip -6-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors -1 and 5-.

-- Remove the bolts -arrows-.

-- Loosen the clamp -3-.

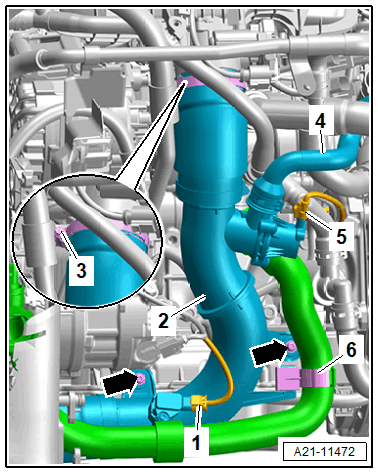

-- Remove the front air duct pipe -2- at the same time guide the air duct hose -4-.
