Secondary Air Injection Solenoid Valve -N112-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air filter housing. Refer to [For engine(s) DSFB] Air Filter Housing, Removing and Installing .

-- Remove the battery tray. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

-- Remove the left air duct pipe. Refer to [For engine(s) DSFB] Left Air Duct Pipe, Removing and Installing .

-- Remove the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

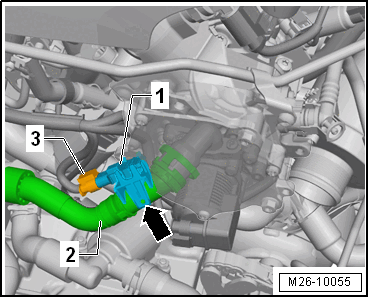

-- Release the hook -arrow- and remove the Secondary Air Injection Sensor 1 -G609- -1- from the connecting line -2-.

-- Remove the connector -3- from the Secondary Air Injection Solenoid Valve -N112- -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

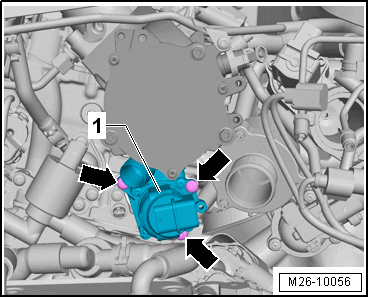

-- Release and disconnect the connecting line -1-.

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Secondary Air Injection Solenoid Valve -N112- -1-.
