Overview - Secondary Air System

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

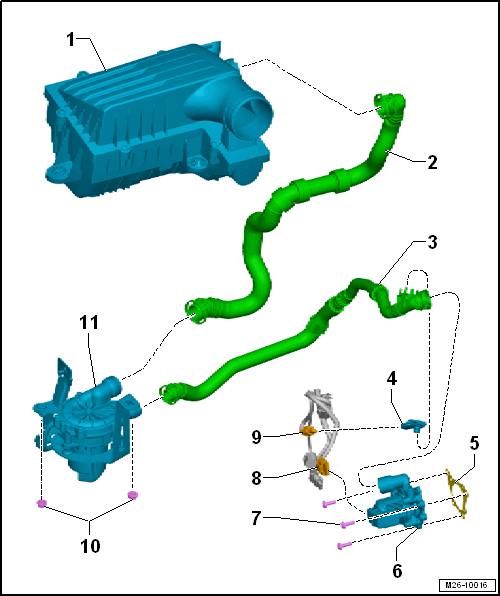

Fig 1: Exploded View Of Secondary Air Injection System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Air Filter Housing
- Refer to [For engine(s) DSFB] Overview - Air Filter Housing .
- Refer to [For engine(s) DSFB] Air Filter Housing, Removing and Installing .
Connecting Line
Connecting Line
Secondary Air Injection Sensor 1 -G609-
Seal
- Replace after removing
Secondary Air Injection Solenoid Valve -N112-
- Refer to Secondary Air Injection Solenoid Valve -N112-, Removing and Installing .
Bolt
- 9 Nm
- Quantity: 3
Connector
Connector
Nut
- 8 Nm
- Quantity: 2
Secondary Air Injection Pump Motor -V101-
- Refer to Secondary Air Injection Pump Motor -V101-, Removing and Installing .
