Exhaust Gas Temperature Sensor, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
-- Coat the threads with hot bolt paste.
Hot Bolt Paste
Refer to the appropriate Electronic Parts Information.

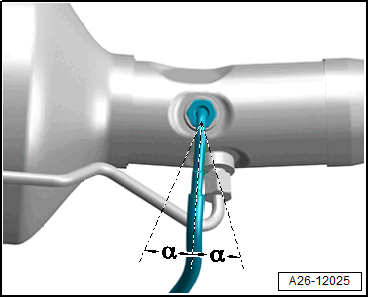

-- Bring the Exhaust Gas Temperature Sensor 4 -G648- into the installation position:
Requirement
- Angle -α- = maximum 15°.
