Exhaust Gas Temperature Sensor, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Loosen the left center underbody trim panel to the exhaust system and push it slightly downward. Refer to UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .

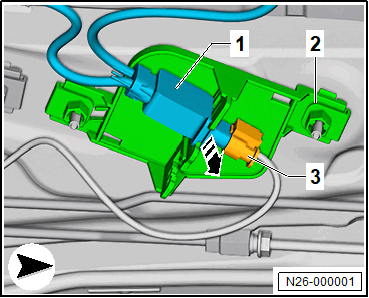

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the connector -1- in the direction of -arrow-.

-- Loosen the front heat shield in the area of the bracket -2-. Refer to FLOOR HEAT SHIELD, REMOVING AND INSTALLING .

-- Free up the wire.

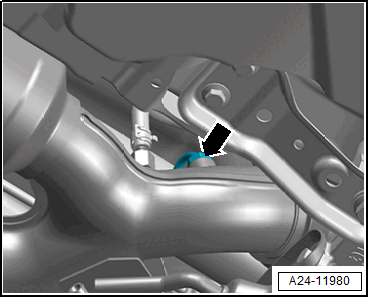

-- Remove the Exhaust Gas Temperature Sensor 3 - G495- -arrow- with a suitable tool from the Diesel Engine Tool Set:T10395B .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

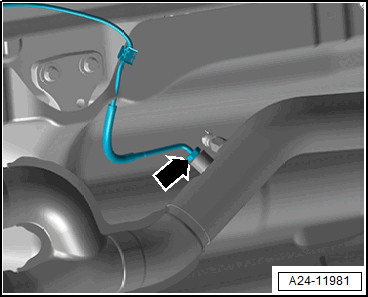

-- Remove the Exhaust Gas Temperature Sensor 4 -G648- -arrow- with a suitable tool from the Diesel Engine Tool Set:T10395B .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
