Muffler, Removing And Installing, Vehicles With Two Rear Mufflers: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Depending on the model, the design of the rear muffler may differ.

-- Loosen the clamping sleeve -arrows- and push it forward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles with Exhaust Door Control Unit

-- Disconnect the connector on the exhaust door control unit.

Continuation for All Vehicles

The help of a second technician is necessary for the following procedure.

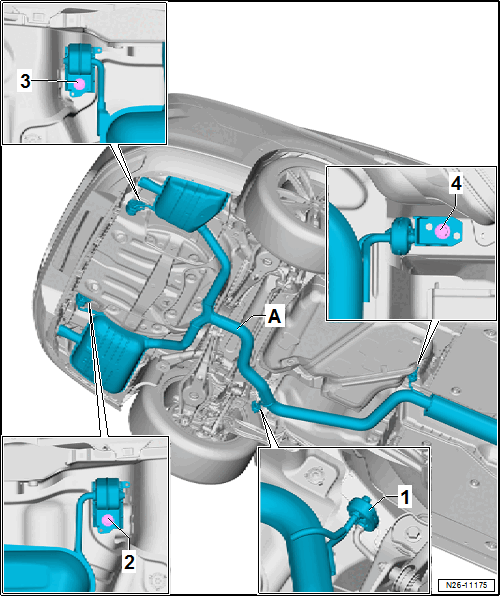

-- Disengage the retaining loop -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2, 3 and 4-.

-- Remove them muffler -A-.
