Front Catalytic Converter/Exhaust Pipe Bracket, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

Vehicles with Lock Washers

-- Make sure that the pop rivet fits into the catalytic converter mounts.

CAUTION:

Risk of injury due to flying metal shavings.

Irritation and injury to skin and eyes possible.

- Wear protective eyewear.

- Wear safety gloves.

-- Drill out the mount using a commercially available drill to a diameter of 7 mm.

-- Attach the bracket for the catalytic converter/front exhaust pipe -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

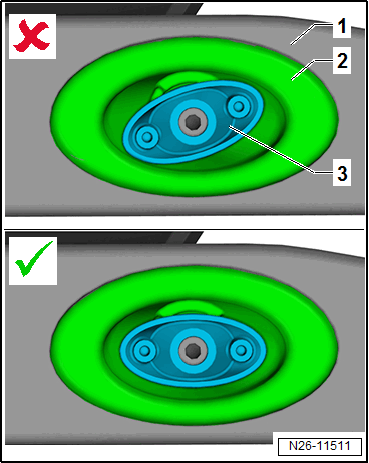

-- Align the lock washers -3- parallel to the rubber bushings -2- and rivet using a commercially available pop rivet pliers.

Continuation for All Vehicles
