Sliding Bar Ball, Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Camshaft Spacer:T40191/1
Installing
CAUTION:
Risk of injuring the eyes due to the sliding bar ball springing out.
- Wear protective eyewear.

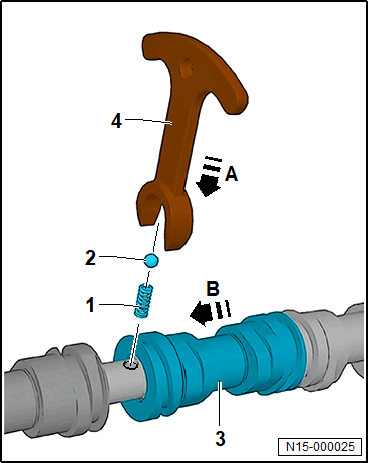

-- Put the spring -1- into the camshaft.
-- Put the spacer ball -2- on the spring -1-.
-- Press the spacer ball -2- and the spring -1- in direction of -arrow A- sing the Camshaft Spacer:T40191/1 -4- and hold.
-- Push the sliding bar -3- in the direction of -arrow B-.
