Lower Timing Chain Cover, Replacing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Cover open engine components.

CAUTION:

Risk of injuring the eyes from sealant residue.

- Wear protective eyewear.

-- Remove any sealant residue on the cylinder block using a commercially available flat blade scraper.

Requirement

The sealing surfaces must be clean and free of lubricant.

-- Insert the alignment pins -arrows-.

Fig 1: Centering Cover Alignment Bushings

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Cut off the tube nozzle at the front marking, so that the diameter of the tube nozzle is 3 mm.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

There is a risk that the lubrication system could be blocked by excess sealant.

- Do not apply sealant bead thicker than indicated.

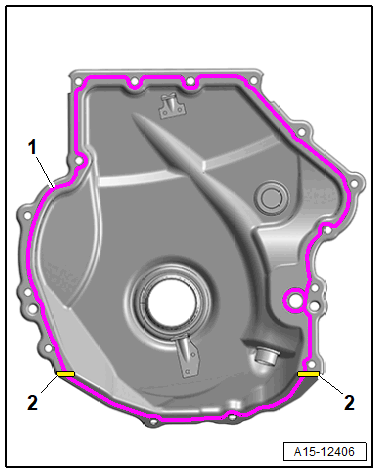

-- Apply sealant -1- onto the sealing surface and on the edges -2- of the new lower timing chain cover.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

The sealant bead thickness must be 2 to 3 mm.
In the area of the threaded holes, the sealant bead must be applied to the inner side.
The lower timing chain cover must be installed within 5 minutes of applying the sealant.

-- Install the lower timing chain cover and tighten the screws.

Fig 2: 15 Bolts Timing Chain Cover Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

The bolts -3 and 6- may only be tightened with an additional turn once the vibration damper is installed.
The sealant must cure for approximately 30 minutes before engine oil can be filled.

-- Filling the engine oil. Refer to Engine Oil, Draining; Replacing and Filling Engine Oil.
