Cylinder Head, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

CAUTION:

Risk of damage due to sanding residue in the engine.

Damage to the turbocharger or the connecting rod bearing may be the result.

- Do not use unapproved sanding materials like sandpaper, sand stone sanding pads, sanding strips, or abrasive cloths.

- Make sure the neighboring work stations are clean and that no unapproved sanding materials are used.

-- Remove the sealant residue at the sealant surfaces using a brush from the Brush Cleaning Set:VAS 294 019 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

Sealing surface may not be raised.
The dark discoloration does not need to be removed.

-- Make sure that no sealant residue enter open ducts of the engine.

-- Remove any loose sealant residue with a lint-free cleaning cloth.

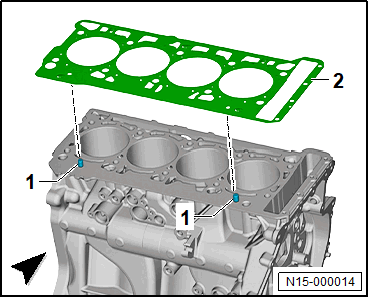

-- Insert the alignment pins -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Apply the new cylinder head gasket -2-, at the same time pay attention to the installation position.

Requirement

The part number must be visible from the intake side.

-- Set piston of cylinder 1 to TDC and turn crankshaft back slightly.

-- Clean oil and coolant residue out of the blind holes for the cylinder head bolts in the cylinder block

Requirement

The help of a second technician is necessary for the following procedure.

-- Position the cylinder head.

-- Insert the cylinder head bolts and screw in by hand.

-- Tighten the cylinder head bolt.

-- Change the engine oil. Refer to Engine Oil, Draining; Replacing and Filling Engine Oil.

If the Cylinder Head was Replaced, then Adaptations must be Made:

-- Perform the "Adaptations after component replacement" using the Vehicle Diagnostic Tester . Refer to the appropriate Service Information .
