Camshaft Timing Chain, Removing And Installing: Notes
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Locking Tool:T40435
- Adapter:T40314
- Vibration Damper Assembly Tool - Knurled Nut:T10531/4
- Vibration Damper Assembly Tool - Turning Over Tool:T10531/3
- Camshaft Locks:T40271/1
- Camshaft Locks:T40271/2
- Camshaft Locks:T40271/3
- Camshaft Locks:T40271/4
- Chain Tensioner Lever:T40243
- Assembly Tool:T40427
- Wrench - 21mm:T40263
- Assembly Tool:T10531/6

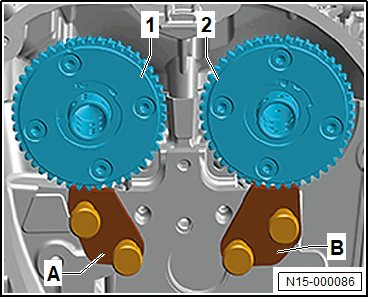

Different tools are needed to secure the camshafts depending on the performance class of the engine. Performance class. Refer to Engine Specifications .
| Performance Class (LK) | Camshaft | Tools |
|---|---|---|
| LK1 | Exhaust -1- | -A- Camshaft Locks:T40271/4 |
| LK1 | Intake -2- | -B- Camshaft Locks:T40271/3 |
| LK2 and LK3 | Exhaust -1- | -A- Camshaft Locks:T40271/2 |
| LK2 and LK3 | Intake -2- | -B- Camshaft Locks:T40271/1 |
