Intermediate Plate, Removing And Installing [DNFF, DSFF, DSFB, DSFE, DRNA, DNFC, DNND, DNFG, DNNA, DNFE, DNPA]: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Refer to TRANSMISSION, REMOVING .

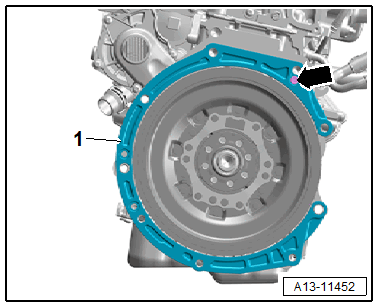

-- Remove the bolt -arrow- and the intermediate plate -1-.

Fig 1: Intermediate Plate, Removing and Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the intermediate plate. Refer to Intermediate Plate, Removing and Installing .

-- Carefully remove the intermediate plate from the alignment sleeves -bottom arrows- and disengage it from the sealing flange -top arrow-.

Fig 1: Installing Intermediate Plate

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
