Vibration Damper Seal, Replacing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the vibration damper. Refer to Vibration Damper, Removing and Installing  .

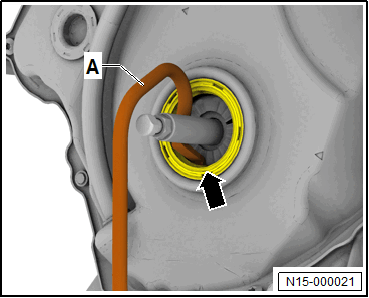

-- Remove the seal -arrow- using the Seal Installer - Crankshaft:T40274  -A-.

GWWN15-000021Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
