Vibration Damper Seal, Replacing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Clean the contact surface and sealing surface.

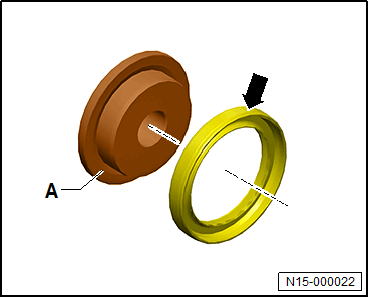

-- Push the seal -arrow- on the Seal Installer - Crankshaft:T10354 -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Requirement

The closed side of the seal -arrow- must point to the Seal Installer - Crankshaft:T10354 -A-.

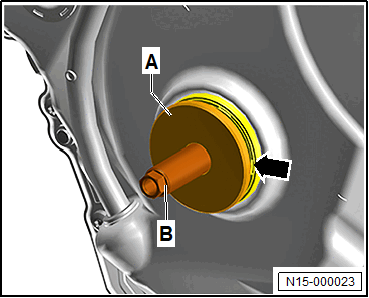

-- Push the thrust piece -A- with the seal -arrow- on the Assembly Tool:T10531/6 -B- and attach to the lower timing chain cover.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

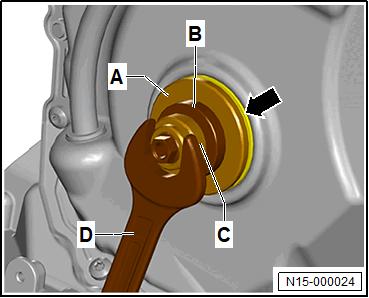

-- Attach the Press Piece - Gearbox:T10375 -B- and install the Knurled Nut:T10531/4 -C-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drive the seal -arrow- in all the way using the Seal Installer - Crankshaft:T10354 -A-.
