Ribbed Belt, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Refer to RIBBED BELT, CHECKING CONDITION .

-- Place the ribbed belts in sequence.

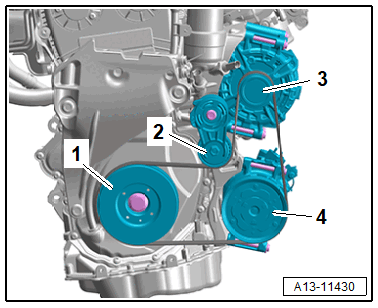

Fig 1: Ribbed Belt Routing - Generator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vibration Damper
Ribbed Belt Tensioner
Generator -C-
A/C Compressor with Magnetic Clutch and Regulator Valve -VX81-

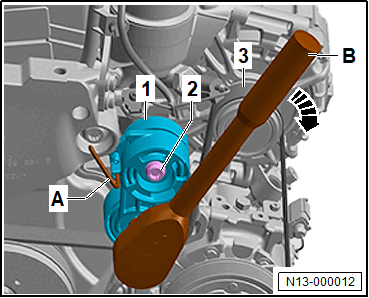

-- Tension the ribbed belt tensioner -1- in direction of -arrow- and remove the Locking Pin:T10060A -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Make sure the ribbed belt -3- is routed correctly.

-- Take away tension from the ribbed belt tensioner -1- in resting position.

-- Start the engine and check whether the ribbed belt -3- runs correctly.
