Overview - Cylinder Block, Belt Pulley Side

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

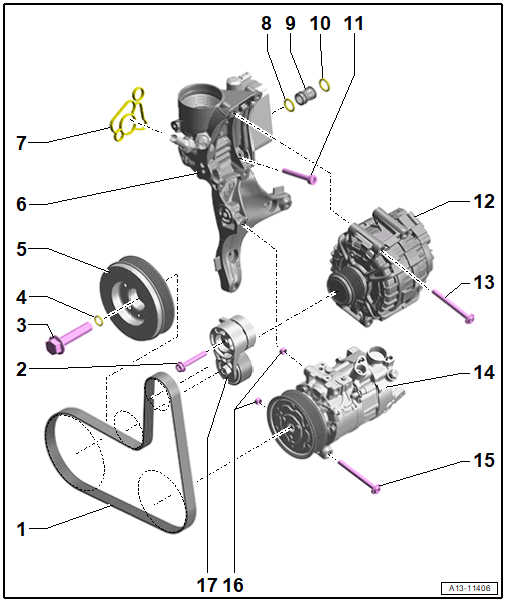

Fig 1: Exploded View Of Cylinder Block, Belt Pulley Side

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Ribbed Belt
- Refer to Ribbed Belt, Removing and Installing .
Bolt
- 20 Nm +90°
- Replace after removing
Bolt
- 100 Nm +180°
- Replace after removing
O-Ring
- Cannot be replaced separately
Vibration Damper
- Refer to Vibration Damper, Removing and Installing .
Sub-Assembly Bracket
- Refer to Sub-Assembly Bracket, Removing and Installing .
Seal
- Replace after removing
O-Ring
- Replace after removing
Connection
O-Ring
- Replace after removing
Bolt
- Replace after removing
- Tightening Specifications and Sequence. Refer to Fig 2.
Generator -C-
- Refer to OVERVIEW - GENERATOR .
- Refer to GENERATOR, REMOVING AND INSTALLING
Bolt
- Refer to OVERVIEW - GENERATOR .
A/C Compressor
- Refer to A/C COMPRESSOR, REMOVING AND INSTALLING FROM BRACKET .
Bolt
- Refer to OVERVIEW - A/C COMPRESSOR .
Alignment Sleeve
- Quantity: 2
Ribbed Belt Tensioner
- Refer to Ribbed Belt Tensioner, Removing and Installing .

Sub-Assembly Bracket - Tightening Specifications and Sequence

Fig 2: Sub-Assembly Bracket - Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Step	Bolts	Tightening Specification/Additional Turn
1.	-4-	Install all the way by hand
2.	-1 through 3- and -5-	Install all the way by hand
3.	-1 through 5-	20 Nm
4.	-1 through 5-	90°
