Engine Support, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the oil filter element. Refer to ENGINE OIL, DRAINING, REPLACING OIL FILTER AND FILLING .

-- Remove the bolts -2-.

Fig 1: Pendulum Support - Tightening Specification and Sequence

GWWN10-11233

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

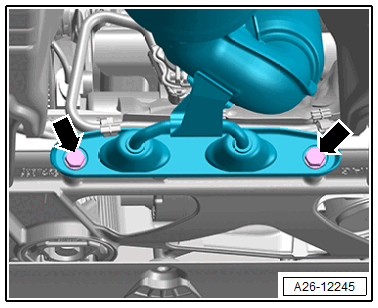

-- Remove the bolts -arrows-.

GWWA26-12245

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the engine mount. Refer to Engine Mount, Removing and Installing .

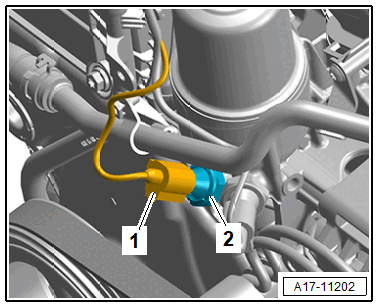

-- Disconnect the connector -1-.

GWWA17-11202

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

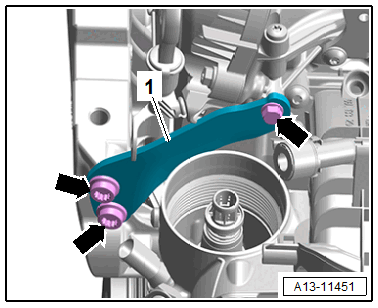

-- Remove the bolts -arrows- and the bracket -1-.

GWWA13-11451

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1 through 3- and the engine support.

Fig 2: Engine Support - Tightening Sequence

GWWA10-12518

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
