Sensor Wheel, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
Tip
The sensor wheel can only be installed in one position, the holes are offset.

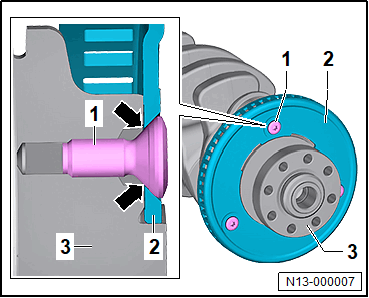

-- Attach the sensor wheel -2-.
Tip
The sensor wheel will deform when tightening -2-, so that, if reused, the bolt heads -arrows- would touch the crankshaft -3- and the crankshaft -2- would be laying loosely.
If the Sensor Wheel was Replaced, then Adaptations must be Made:
-- Perform the "Adaptations after component replacement" using the Vehicle Diagnostic Tester. Refer to the appropriate Service Information .
