Luggage Compartment Lamp -W3- /Luggage Compartment Lamp 2 -W115-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

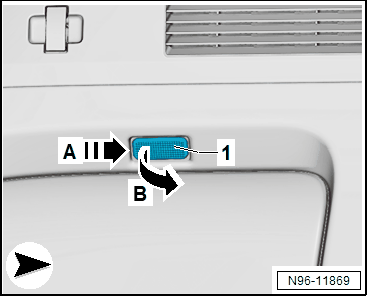

-- Release the Luggage Compartment Lamp -W3- -1- using the Removal Wedge Set:VAS895015 in direction of the -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pivot out the Luggage Compartment Lamp -W3- -1- in the direction of the -arrow B- until the connector is accessible.

-- Disconnect the connector.

-- Remove the Luggage Compartment Lamp -W3- -1-.
