Left Front Footwell Lamp -K268-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Store the vehicle key outside of the vehicle so that the ignition will not unintentionally start.

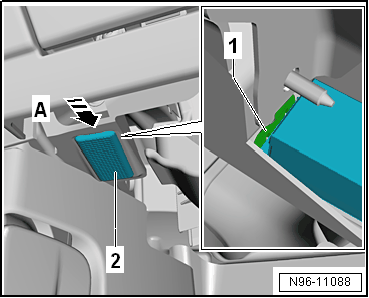

-- Release the locking tab -1- using the Removal Wedge Set:VAS895015  in direction of the -arrow A-.

GWWN96-11088Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pivot out the Left Front Footwell Lamp -K268- -2- until the connector is accessible.

-- Disconnect the connector.

-- Remove the Left Front Footwell Lamp -K268- -2-.
