Front Passenger Airbag -Disabled- Indicator Lamp -K145-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

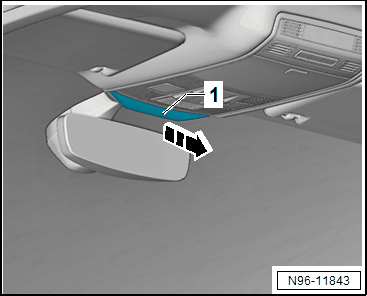

-- Release the Front Passenger Airbag -Disabled- Indicator Lamp -K145- -1- using the Removal Wedge Set:VAS895015  in direction of the -arrow-.

GWWN96-11843Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector.

-- Remove the Front Passenger Airbag -Disabled- Indicator Lamp -K145- -1-.
