Component Location Overview - Rear Door Lamps

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

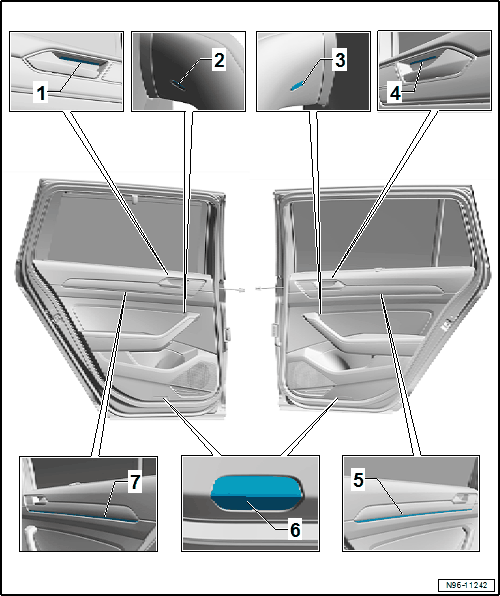

Fig 1: Rear Door Lamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Driver Side Rear Interior Door Handle Illumination Bulb -L221-
- Removing and Installing. Refer to Driver Side Rear Interior Door Handle Illumination Bulb -L221- /Passenger Side Rear Interior Door Handle Illumination Bulb -L222-, REMOVING AND INSTALLING .
Left Rear Door Ambient Lighting Bulb -L166-
- Removing and Installing. Refer to Left Rear Door Ambient Lighting Bulb -L166- /Right Rear Door Ambient Lighting Bulb -L167-, REMOVING AND INSTALLING .
Right Rear Door Ambient Lighting Bulb -L167-
- Removing and Installing. Refer to Driver Side Rear Interior Door Handle Illumination Bulb -L221- /Passenger Side Rear Interior Door Handle Illumination Bulb -L222-, REMOVING AND INSTALLING .
Passenger Side Rear Interior Door Handle Illumination Bulb -L222-
- Removing and Installing. Refer to Driver Side Rear Interior Door Handle Illumination Bulb -L221- /Passenger Side Rear Interior Door Handle Illumination Bulb -L222-, REMOVING AND INSTALLING .
Right Rear Door Ambient Lighting Bulb 1 -L202-
- The Right Rear Door Ambient Lighting Bulb 1 -L202- is integrated into the front door trim panel decorative trims and cannot be removed individually.
- Removing and Installing. Refer to DECORATIVE TRIM, REMOVING AND INSTALLING .
Door Reflector
- Removing and Installing. Refer to DOOR REFLECTOR, REMOVING AND INSTALLING .
Left Rear Door Ambient Lighting Bulb 1 -L201-
- The Left Rear Door Ambient Lighting Bulb 1 -L201- is integrated into the front door trim panel decorative trims and cannot be removed individually.
- Removing and Installing. Refer to DECORATIVE TRIM, REMOVING AND INSTALLING .
