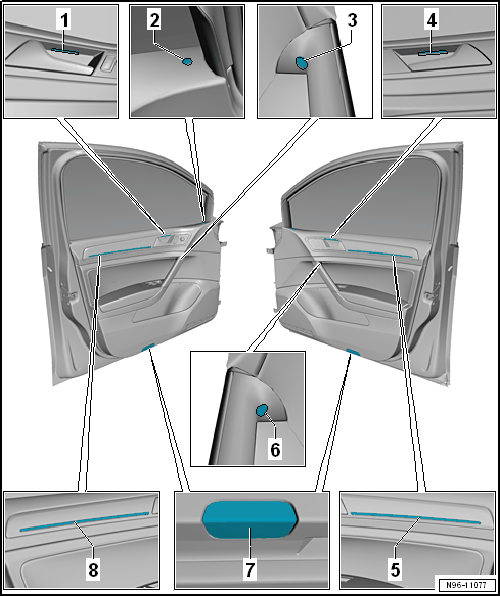

Component Location Overview - Front Door Lamps
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Side Interior Door Handle Illumination Lamp -L219-
- Removing and Installing. Refer to Driver Side Interior Door Handle Illumination Lamp -L219- /Passenger Side Interior Door Handle Illumination Lamp -L220-, REMOVING AND INSTALLING .
- Central Locking -Safe- Indicator Lamp -K133-
- Removing and Installing. Refer to Central Locking -Safe- Indicator Lamp -K133-, REMOVING AND INSTALLING .
- Left Front Door Ambient Lighting Bulb 2 -L203-
- Removing and Installing. Refer to Left Front Door Ambient Lighting Bulb 2 -L203- / Right Front Door Ambient Lighting Bulb 2 -L204-, REMOVING AND INSTALLING .
- Passenger Side Interior Door Handle Illumination Lamp -L220-
- Removing and Installing. Refer to Driver Side Interior Door Handle Illumination Lamp -L219- /Passenger Side Interior Door Handle Illumination Lamp -L220-, REMOVING AND INSTALLING .
- Right Front Door Contour Illumination Lamp -L252-
- The Right Front Door Contour Illumination Lamp -L252- is integrated into the front door trim panel decorative trims and cannot be removed individually.
- Removing and Installing. Refer to DECORATIVE TRIM, REMOVING AND INSTALLING .
- Right Front Door Ambient Lighting Bulb 2 -L204-
- Removing and Installing. Refer to Left Front Door Ambient Lighting Bulb 2 -L203- / Right Front Door Ambient Lighting Bulb 2 -L204-, REMOVING AND INSTALLING .
- Left Front Entry Lamp -W31- /Right Front Entry Lamp -W32-
- Removing and Installing. Refer to Left Front Entry Lamp -W31- /Right Front Entry Lamp -W32-, REMOVING AND INSTALLING .
- Left Front Door Contour Illumination Lamp -L251-
- The Left Front Door Contour Illumination Lamp -L251- is integrated into the front door trim panel decorative trims and cannot be removed individually.
- Removing and Installing. Refer to DECORATIVE TRIM, REMOVING AND INSTALLING .
