Telematics Button Module -E734-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front interior lamp/reading lamp. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

-- Remove the Anti-Theft Alarm System Sensor -G578-, if equipped. Refer to Anti-Theft Alarm System Sensor -G578-, REMOVING AND INSTALLING .

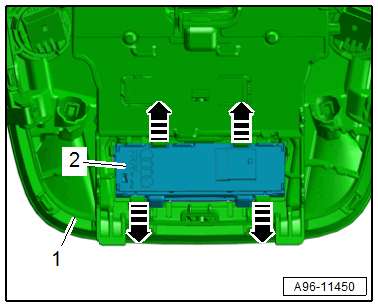

-- Release the retainers in direction of the -arrow-.

GWWA96-11450Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the control head -2- from the front interior lamp/reading lamp -1-.
