Rear Lid Lock Button in Luggage Compartment -E406-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

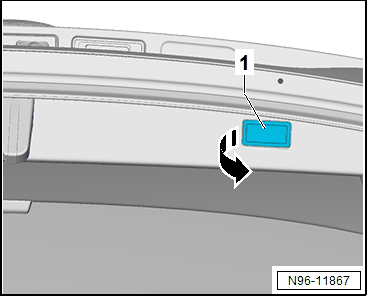

-- Release the Rear Lid Closing Button -E574- -1- in the direction of the -arrow- using the Removal Wedge Set:VAS895015
.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Remove the Rear Lid Closing Button -E574- -1-, until the connector is accessible.
-- Disconnect the connector.
-- Remove the Rear Lid Closing Button -E574- -1-.
