Power Window Control Head in Driver Door -E512-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front armrest. Refer to FRONT ARMREST, REMOVING AND INSTALLING .

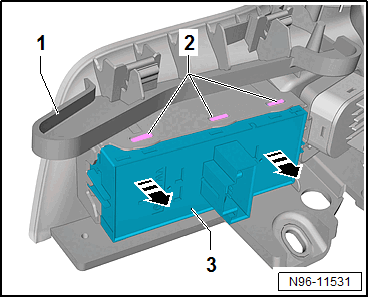

-- Release the retainers -2- on both sides.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Power Window Control Head in Driver Door -E512- -3- in direction of the -arrow- from the mount -1-.
